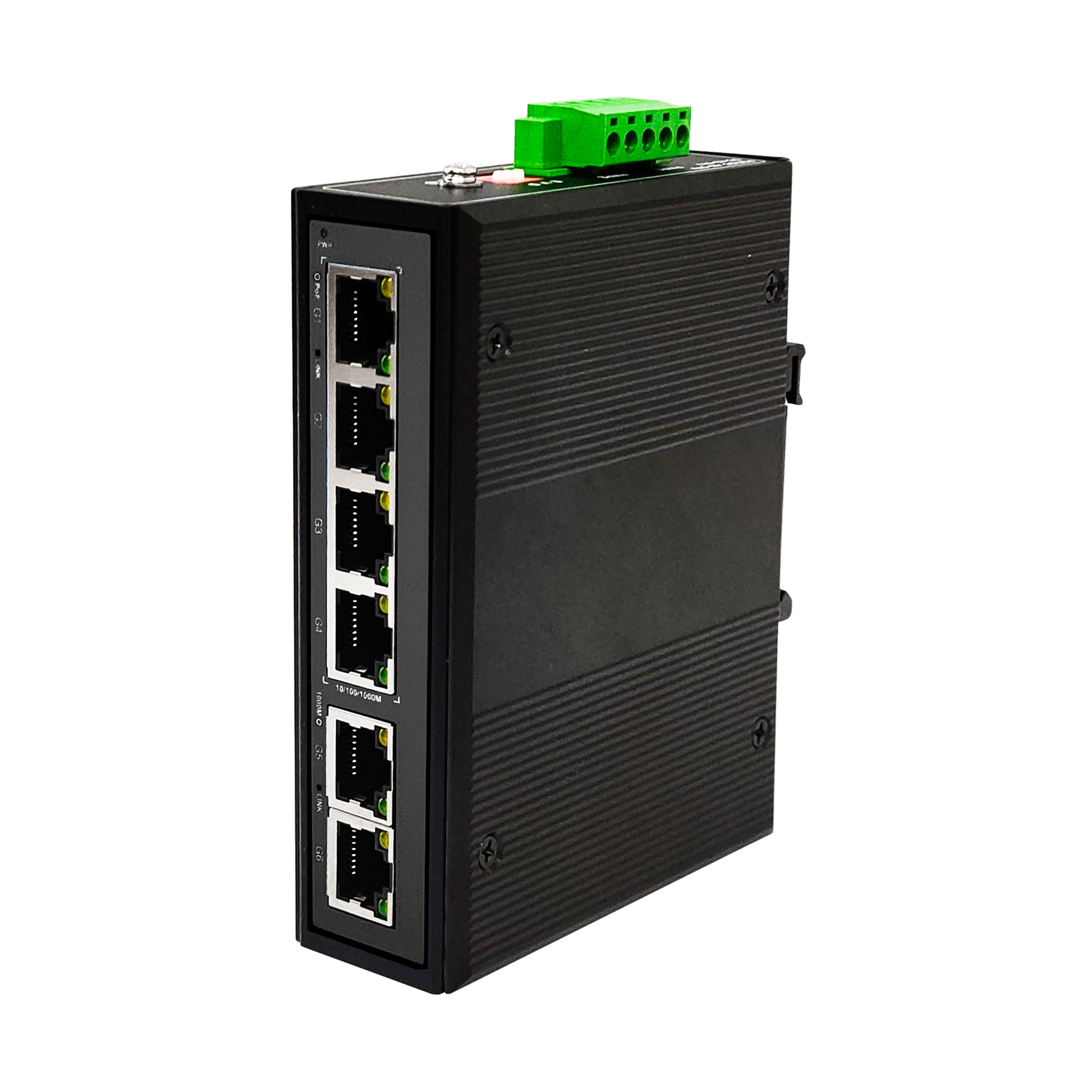

4 Port 1G RJ45 Industrial PoE Switch with 2*1G RJ45
Model:TPSW-0402GS
- 4*10/100/1000Base-T RJ45 ports and 2*10/100/1000Base-T uplink RJ45 ports, port 1-4 can support PoE;
- The uplink RJ45 ports can be transmitted and cascaded, and the connection is more convenient;
- Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale
- Dual power supply input, DC input: 48V-57V, 6KV port lightning protection;
- -40°C~+85°C operation temperature;
- Large cache military-level master chip configuration, IP40 protection aluminum alloy case;
- IP protection level: IP40; Rail-type installation;
- 5 years warranty.
Specifications
| Fixed Port | 4*10/100/1000Base-T PoE ports (Data/Power) | |
| 2*10/100/1000Base-T uplink RJ45 ports (Data) | ||
| 2 set of V+, V- redundant DC power interface (5P Phoenix terminal) | ||
| Ethernet Port | Port 1-6 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) | |
| 100BASE-TX: Cat5 or later UTP (≤100 meter) | ||
| 1000BASE-T: Cat5e or later UTP (≤100 meter) | ||
| Network Protocol | IEEE802.3 10BASE-T | |
| IEEE802.3u 100BASE-T/TX | ||
| IEEE802.3ab 1000BASE-T | ||
| IEEE802.3x. | ||
| Forwarding Mode | Store and Forward | |
| Switching Capacity | 12Gbps | |
| Forwarding Rate@64byte | 8.93Mpps | |
| MAC | 4K | |
| Buffer Memory | 1M | |
| Jumbo Frame | 10K | |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green), | |
| 5-6(Link/Act)/ (Green), Speed/ (Orange); POE indicator: PoE (Orange) | ||
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
| Power Supply Pin | Default 1/2(+), 3/6(-); | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR / Input Voltage | 60W/48VDC | 120W/48VDC |
| Power Consumption | Standby:<2W; Full load:<60W | Standby:<2W; Full load:<120W |
| Power Supply | No, optional 48V/60W or 48V/120W industrial power supply | |
| Working Voltage | 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection. | |
| Operation TEMP / Humidity | -40~+85°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+125°C;5%~95% RH Non condensing | |

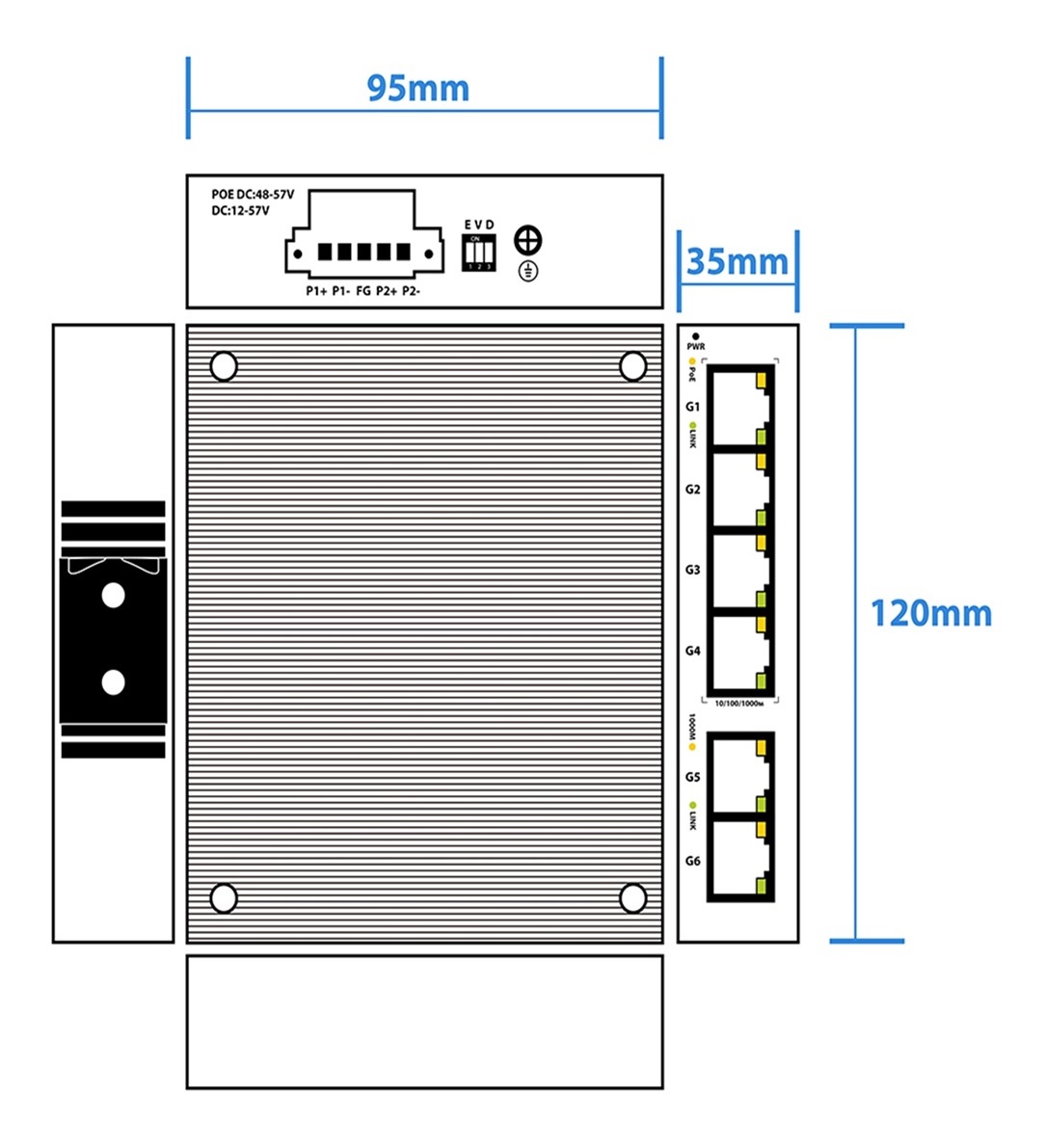

| Dimension (L*W*H) | 120*95*35mm | |
| Net /Gross Weight | <0.6kg / <0.8 kg | |
| Installation | Desktop, DIN rail | |
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 | |
| IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge | ||
| IEC61000-4-3(RS):10V/m(80~1000MHz) | ||
| IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV | ||
| IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV | ||
| IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) | ||
| IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s | ||
| IEC61000-4-9(pulsed magnet field):1000A/m | ||
| IEC61000-4-10(damped oscillation):30A/m 1MHz | ||
| IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV | ||
| IEC61000-4-16(common-mode transmission):30V; 300V,1s | ||
| FCC Part 15/CISPR22(EN55022): Class A | ||
| IEC61000-6-2(Common Industrial Standard) | ||
| Certification | CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; | |
| Warranty | 5 years, lifelong maintenance. | |
